Speedy Versatio F
Handbike with sporty, comfortable support!
Versatio is Latin for ‘revolution’ and the Versatio F drive system ensures this. The Speedy Versatio F combines the strengths of a visually fast handbike with independence thanks to intelligent motor support. It is suitable for everyday use without having to sacrifice its sporty character.
The Versatio F Handbike in Detail
Thanks to innovative, intelligent sensor technology, the motor develops its power particularly harmoniously. With a rated output of 250 watts and a rated torque of 45 Nm, the driver can draw on the full potential. However, the decisive advantages for wheelchair users lie elsewhere. The wheelchair user can freely select the level of assistance when handcycling from 5 levels. This system also includes a starting aid using thumb throttle.
The Versatio F hub motor is characterised by its high quality and compatibility. The great advantage of geared hub motors is that the Versatio F can be operated like a manual wheelchair hoist when no electrical assistance is required. There are no additional friction losses or pedalling resistance. The built-in planetary gearbox and the brushless motor are precisely matched to each other and therefore offer a unique handbike experience.
The motor impresses with its smooth running and high performance even at low speeds. Despite its low weight and compact size, the hub motor has a high torque thanks to its gear ratio. All components are tested according to the highest industry standards, according to which neither dust nor moisture may penetrate. Our customers appreciate this robust quality and high-quality workmanship in daily use.
technical specifications
Weight: approx. 17 kg (without removable battery)
Towing capacity: max. 120 kg
Wheel size: 20 Zoll
Frame/equipment: St37 steel powder coated in RAL colours, V cranks, ergonomic handles,
Kink protection system for Bowden cables, automatic lift system (stainless steel), infinitely variable inertia steering dampers, chain guard and frame-integrated chain tensioners, stand, bell
Drive system: Versatio F (250 Watt, 43 Volt, 45 Nm), programmable control with LCD colour matrix display.
Battery: Lithium-Ionen-battery 43 V, 17,5 Ah, 750 Wh, approx 3,5 kg, IP X6, with carger
Gearshift system: Shimano chain gearshift: Twist-grip gears 8-fold, grid gears 9-fold.
Brake system: Shimano V-brakes und mechanical disc brake, manual brake lever or backpedal brakes.
Tyres: Trekking 20 x 1,75, Cross 20 x 1,90
Pannier rack with system-integrated LED lighting
Optional equipment: Replacement lithium battery, traction help (2 x 5 kg additional weight), pannier rack, Ortlieb pannier bags, tandem handle horizontal or at an angle, leg support, exercise bike, manoeuvring system
optional accessories
With latching gearshift on handle.
With twist-grip gearshift on handle..
Change gears with your chin in case of missing hand function.
Handle for one- or two-sided lifting of the device when coupling and uncoupling.
The handle facilitates use when coupling and uncoupling.
Extends the grip distance to approx. 20 cm
For the resting the legs in the tandem operation in case of stiff knee joints. The distance to the bike and the incline to the front and back are adjustable.
Improves performance in hilly terrain.

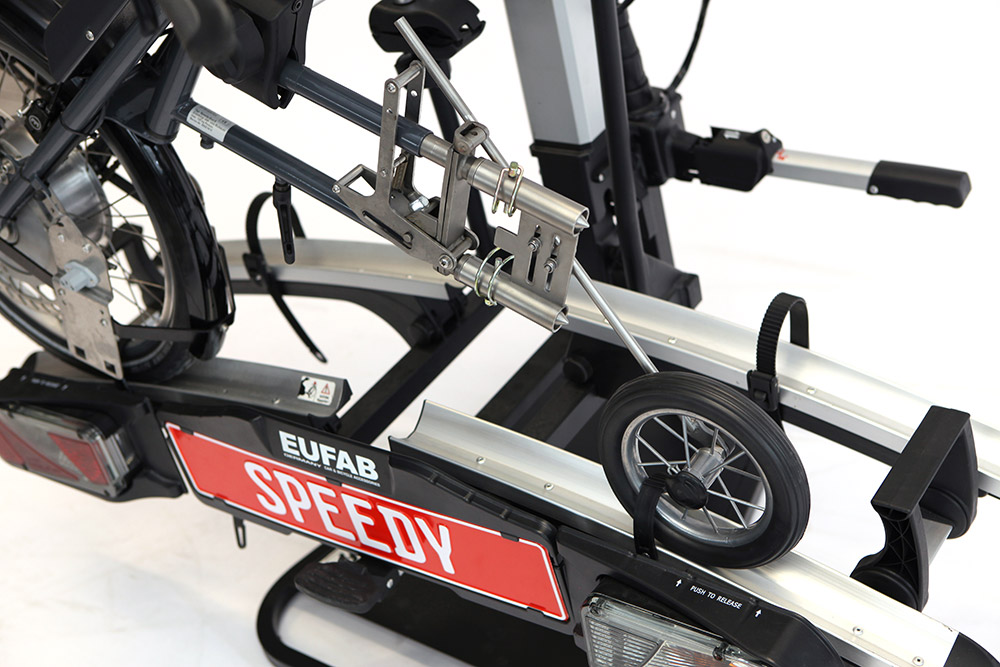

Compatible with all Speedys, the manoeuvring aid simplifies simplifies transport when not coupled and the use of a the use of a standard rear transporter. The manoeuvring aid is attached to the lift system. The the additional wheel, the handbike can be easily and attached to a rear transporter.
The handle with its eccentric fixation is automatically activated when the crank handle is pulled. Keeps the hand in a horizontal position.
A hand guide prevents hands slipping off to the side. The gap and angle to the back of the hand can be adjusted.
A combination of back of hand and wrist support.
The gap, length and angle to the lower arm and wrist support can be adjusted.
Contact us for more information!
